M Series
IC-8608
- Boiler Horsepower: 33 - 250
- Emissions (ppm NOx): Uncontrolled
- Fuel: Gas, Oil, Comb.
- Furnace Pressure: .75 - 2
- Input Capacity (MBH): 1,400 - 10,500
- Min Gas Pressure: 8.8
- Mode of Operation: Full Modulation
- Oil Input (US GPH): 10 - 75
- Parallel Positioning: Standard
- Turndown: Up to 6:1
- 1.4 to 10.5 MMBTU/HR
- Gas, light and heavy oil fuels
- Low-pressure air atomizing system on oil with rotary vane compressor
- Lower gas supply pressure configurations available for New York City requirements
- Full modulation

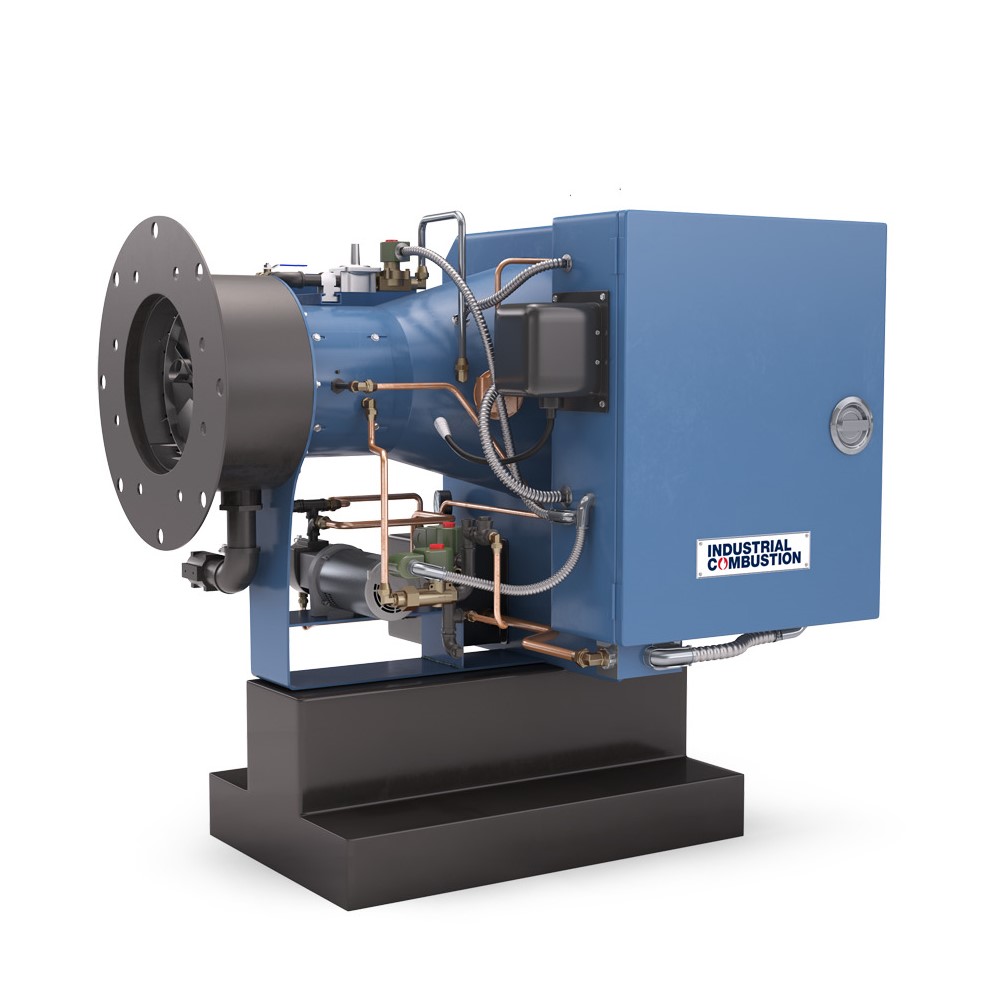

The Industrial Combustion M series burner forced draft design allows for tried and true trouble-free operation and superior efficiency on boiler, heater, furnace, kiln and dryer applications worldwide.
- Product Overview
- Related Resources
- Applications
- Gas, light and heavy oil fuels
- Low-pressure air atomizing system on oil with rotary vane compressor
- Piston-type positive displacement oil metering pump
- Cam trim with 14-point adjustment range for consistent air/fuel ratios on models M34-63
- Nozzle line electric heater standard on medium to heavy oil burners
- Gas manifold on oil burners standard for easy upgrade to combination units
- Hinged combustion head for easy access and maintenance
- Backward-curved impeller provides adequate combustion air for various furnace pressures
- Refractory combustion cone
- Full modulation
The M series burner offers: natural gas, propane gas, air atomized #2-6 fuel oil and combination gas and oil fuel options from 1.4 to 10.5 MM BTU per hour. Full modulation operation is standard for optimum performance to meet load demand. The M burner is an excellent choice when firing alternative fuels such as digester, waste oil, and biodiesel.
